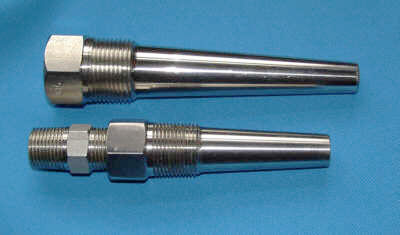

THERMOWELLS
AEROGARD thermowells come in a large assortment of options, such as:
•Standard or heavy duty construction
•Large selection of I.D. bore sizes,
•With or without lagging extensions,
•1/2″ or 3/4″ NPT mounting threads.
At ARi, we can also custom design a thermocouple or temperature sensor to work with the thermowells you currently use for your application, for more details talk to a sales representative today.
Common thermowell materials include Brass, Carbon Steel, 304 and 304L Stainless Steel, 316 and 316 LC Stainless Steel, Hastelloy B & C, Incoloy 800, Inconel 600, and Titanium.
Pressure Rating (psi) at Temperature °F |
||||||||
|---|---|---|---|---|---|---|---|---|
| Bore (inch) | Material | Temperature (°F) | ||||||
| 70° | 200° | 400° | 600° | 800° | 1000° | 1200° | ||
| 0.260 | AISI-304 | 7800 | 7050 | 6400 | 6150 | 6000 | 5190 | 1875 |
| AISI-316 | 7800 | 7800 | 7250 | 7100 | 6950 | 5800 | 2720 | |
| 0.385 | AISI-304 | 7000 | 6200 | 5600 | 5400 | 5200 | 4500 | 1650 |
| AISI-316 | 7000 | 7000 | 6400 | 6200 | 6100 | 5100 | 2500 | |
